Centrifugal vs Axial Flow Fans: Which Is Right for Your Plant?

Industrial ventilation systems rely heavily on fan selection. The two most common types—Centrifugal Fans and Axial Flow Fans—look similar at first glance, but their working principles differ greatly. Knowing how each fan moves air and handles pressure makes it easier to match the right model to your plant’s operating conditions.

1.How Each Fan Moves Air

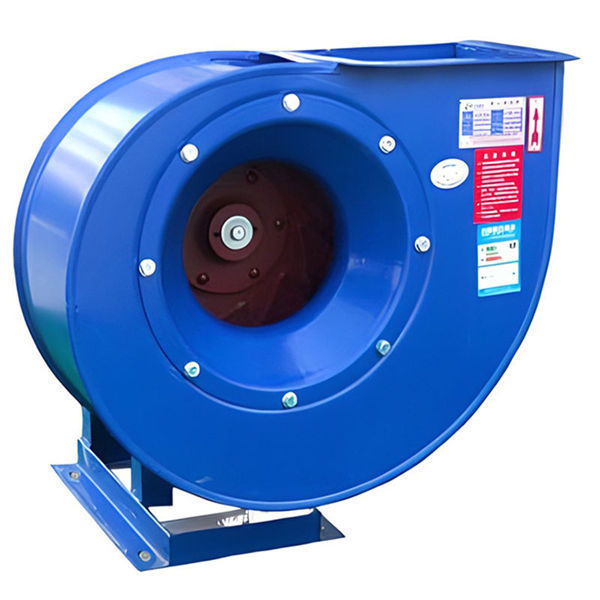

Centrifugal Fans

Air enters the center of the impeller and is pushed outward by centrifugal force. Because the airflow is discharged at a right angle, the fan builds strong static pressure. This structure helps the fan overcome resistance from filters, bends, or long duct runs.

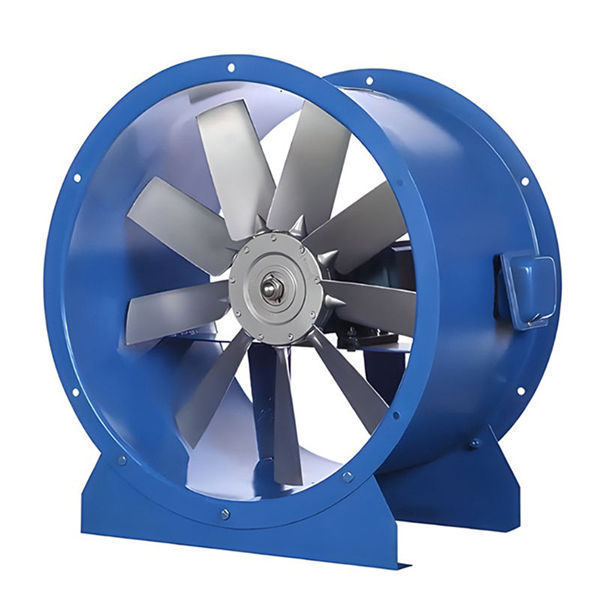

Axial Flow Fans

Axial fans move air straight through, along the same direction as the rotating blades. The airflow is direct, allowing the fan to deliver large volumes of air with minimal resistance. They are light, efficient, and suitable for open spaces or cooling areas with fast air movement.

2. Airflow Direction

Centrifugal Fans: airflow moves outward from the center, forming a radial pattern.

Axial Flow Fans: airflow follows the shaft direction—simple, straight, and unobstructed.

3. Pressure and Air Volume

Centrifugal Fans

Higher pressure, lower air volume. They remain stable even when the

system demands strong airflow against resistance.

Axial Flow Fans

Higher air volume, lower pressure. They deliver more air in the same size but lose efficiency if duct resistance becomes too high.

In short:

Need high pressure? Choose a centrifugal fan.

Need high airflow? Choose an axial fan.

4. Where Each Fan Performs Best

Centrifugal Fans are commonly used in:

HVAC and ventilation systems

Air filtration, dust and fume extraction

Boiler rooms and heat exchanger setups

Industrial drying and gas-handling lines

Axial Flow Fans are well suited for:

Cooling and heat-dissipation zones

Large workshop or warehouse ventilation

Air purification and circulation

Low-resistance HVAC ducts

Across many industries, centrifugal models serve as the workhorse for demanding environments, while axial fans take the lead in high-volume, low-pressure applications.

5. How to Choose the Right Fan for Your Plant

Consider your system’s airflow structure and resistance:

Long ducts, filters, or high resistance:

→ Centrifugal Fans provide the pressure needed.

Open ventilation, cooling, large fresh-air volume:

→ Axial Flow Fans are more efficient and economical.

Limited installation space:

→ Axial fans are more compact.

Harsh environments (dust, fumes, hot exhaust):

→ Centrifugal fans offer better durability and performance.

Matching the right fan type not only improves ventilation but also reduces energy consumption and enhances long-term reliability.

Selecting the right structure ensures better airflow, lower energy waste, and more stable day-to-day operation.

Both Centrifugal Fans and Axial Flow Fans have clear strengths. The choice depends on whether your plant needs higher pressure or higher volume, and how much resistance the system creates. With the right match, your ventilation system runs more efficiently and adapts better to long-term industrial use.

If your plant requires engineering support, our team can help compare system resistance and airflow needs and recommend the right industrial ventilation solutions.
