The Commercial Mixed Flow Duct Fan is a ventilation device that moves and distributes air efficiently through ducts in commercial and industrial spaces. This mixed flow duct fan delivers steady high-pressure airflow over long distances. Its circular fan body connects directly to ducts, making installation quick and hassle-free.
Type :
Duct FanPayment :
T/TOrder(MOQ) :
1 PCShipping Port :
GuangZhou, FoShanLead Time :
7-15 daysProduct Origin :
ChinaCommercial Mixed Flow Duct Fan for Ventilation & Air Distribution
The Commercial Mixed Flow Duct Fan is a ventilation device that moves and distributes air efficiently through ducts in commercial and industrial spaces. This mixed flow duct fan delivers steady high-pressure airflow over long distances. Its circular fan body connects directly to ducts, making installation quick and hassle-free.
Key Features
1.Efficient Airflow: Maintains consistent pressure in duct systems for reliable ventilation.
2.Long-Range Performance: Suitable for large areas like hotels, shopping malls, and entertainment venues.
3.Durable Build: Sturdy fan body with a reliable motor and long-lasting ball bearings.
4.Compact Design: Circular shape allows direct duct connection and easy setup.
5.Low Maintenance: Built for continuous operation with minimal upkeep.
| Model | Voltage | Frequency | Power | Volume | Static Pressure | Noise | Duct Size |
| (No.) | (v) | (Hz) | (w) | (m3/h) | (Pa) | (dB) | (mm) |
| D100 | 220~240 | 50~60 | 28/25 | 200/150 | 180/130 | 30/25 | 100/125 |
| D150 | 220~240 | 50~60 | 50/40 | 500/450 | 300/250 | 35/30 | 150/160 |
| D200 | 220~240 | 50~60 | 70/60 | 850/700 | 350/280 | 50/45 | 200 |
| D250 | 220~240 | 50~60 | 170/130 | 1500/1100 | 550/400 | 60/54 | 250 |
| D315 | 220~240 | 50~60 | 320/230 | 2300/1800 | 700/500 | 66/61 | 315 |

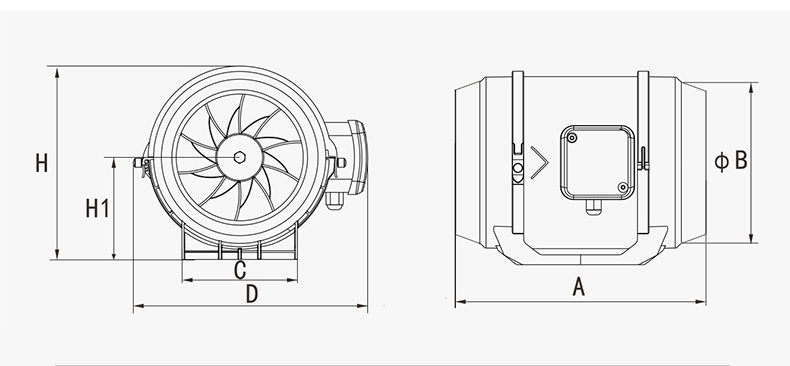

| Model | A | ∅B | C | D | H | H1 |
| D100 | 300 | ∅100 | 100 | 214 | 182 | 95 |
| D150 | 293 | ∅150 | 120 | 237 | 211 | 110 |
| D200 | 304 | ∅200 | 140 | 258 | 235 | 124 |
| D250 | 383 | ∅250 | 180 | 298 | 291 | 152 |
| D315 | 413 | ∅315 | 220 | 364 | 359 | 189 |

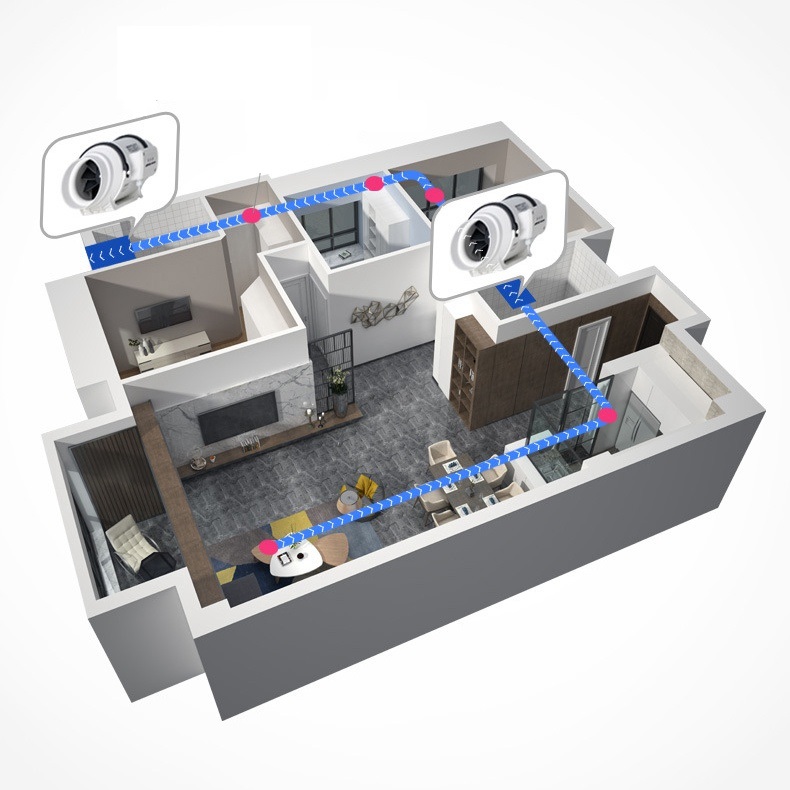

Applications
This commercial ventilation duct fan works well for:
Air distribution in large buildings, hotels, and malls
HVAC systems that need steady airflow and pressure
Continuous ventilation in entertainment venues and industrial workshops
Duct systems requiring long-distance air supply
The Commercial Mixed Flow Duct Fan for Ventilation & Air Distribution combines steady airflow, long-range performance, and durable construction. Its compact fan body and high-quality motor make it easy to install and reliable for commercial and industrial ducted systems.
