Belt Drive Industrial Axial Flow Fan for Ventilation

Industrial Exhaust Ventilator Axial Flow Fan Belt Drive T30C
axial flow ventilator
axial flow ventilator
axial flow ventilator
axial flow fan

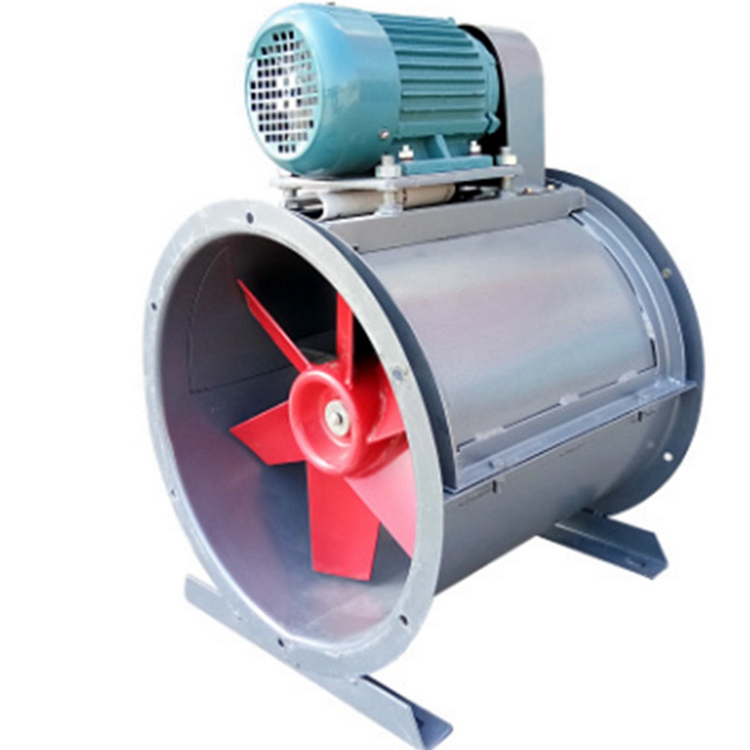

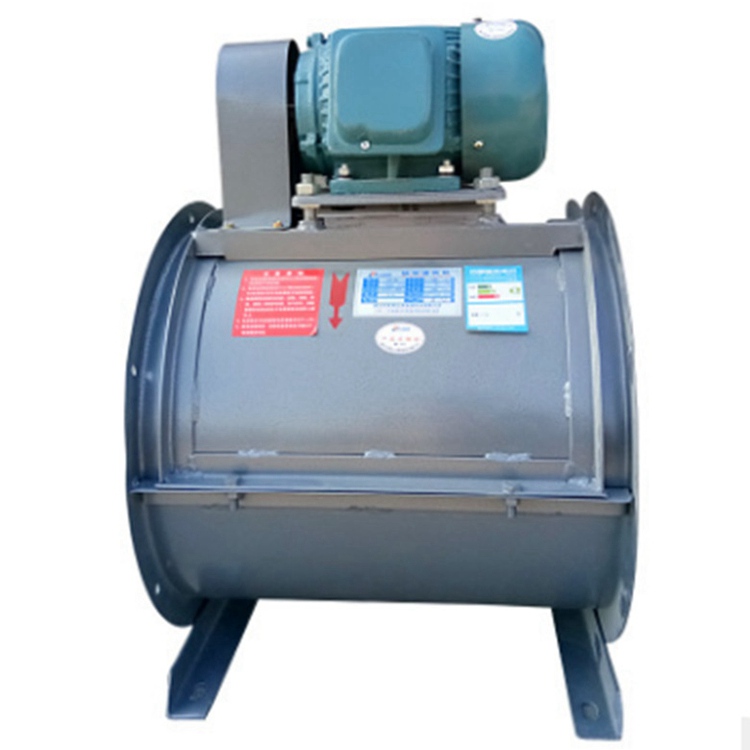

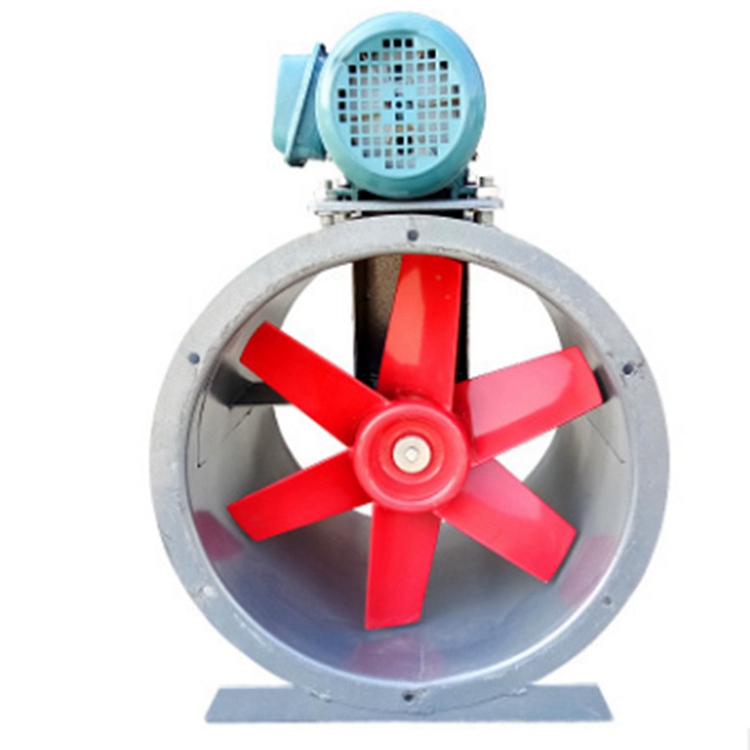

Belt Drive Industrial Axial Flow Fan for Ventilation

The Belt Drive Industrial Axial Flow Fan is a ventilation device that moves and exhausts high-temperature, non-flammable, and non-corrosive gases through industrial pipelines. This fan features a rational structure, low noise, high efficiency, and strong blades, making it suitable for both common and open-type applications in industrial ventilation and compression systems. The fan handles gases without oil, water, or dust, and operates safely up to 50℃.

  • Type :

    Axial Flow Fan

  • Payment :

    T/T

  • Order(MOQ) :

    1 PC

  • Shipping Port :

    GuangZhou, FoShan

  • Lead Time :

    7-15 days

  • Product Origin :

    China
Inquiry now

Belt Drive Industrial Axial Flow Fan for Ventilation



Belt Drive Industrial Axial Flow Fan for Ventilation is a ventilation device that moves and exhausts high-temperature, non-flammable, and non-corrosive gases through industrial pipelines. This fan features a rational structure, low noise, high efficiency, and strong blades, making it suitable for both common and open-type applications in industrial ventilation and compression systems. The fan handles gases without oil, water, or dust, and operates safely up to 50℃.



Belt Drive Industrial Axial Flow Fan for Ventilation



Advantages

1.Compact structure for easy installation in industrial axial flow fan systems.

2.Available in multiple materials: Mild steel, Stainless Steel #304/#316/#316L, Aluminum Alloy.

3.Air performance parameters tested for accuracy and reliability.

4.Equipped with a 400-ton die-casting aluminum alloy impeller for high performance.

5.Low maintenance with long-lasting durability.



Applications

1.Building ventilation systems, firefighting, and general air circulation.

2.Filtration and drying equipment, food processing, painting rooms, and medical processing

3.Industrial pipelines requiring exhaust of hot, clean gases.



Model Power(kW) Voltage(V) Rotation(r/min) Volume(m³/h) Pressure(Pa) Noise dB(A)
3C 0.37 380 1400 1750 30 ≤67
3.5C 0.55 380 1400 2500 40 ≤68
4C 0.75 380 1600 4148 90 ≤74
0.55 380 1400 3500 79 ≤73
5C 1.5 380 1600 8460 128 ≤84
1.1 380 1450 7667 100 ≤80
2.2 380 1800 9517 162 ≤85
6C 1.5 380 1200 11590 123 ≤79
2.2 380 1450 14000 179 ≤84
3 380 1600 15448 217 ≤85
7C 3 380 1450 19000 226 ≤89
8C 4 380 1450 24500 221 ≤91
9C 5.5 380 1450 31421 215 ≤92
10C 4 380 960 27755 134 ≤87
12C 7.5 380 960 44731 260 ≤93

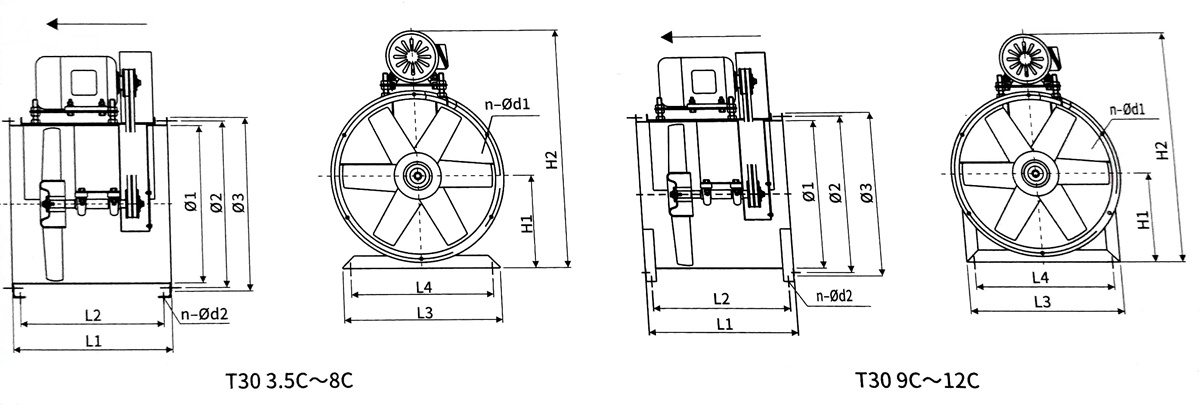

Model Motor power Dimension Base Dimension weight
∅1 ∅2 ∅3 n-∅d1 L1 L2 L3 L4 41 12 n-∅d2 KG
3C 71-4-0.37kW 310 340 370 4-∅8 450 410 300 230 195 535 4-15x25 31
3.5C 80-4-0.55kW 360 395 420 6-∅8 450 410 350 280 220 625 4-15x25 36
4C 80-4-0.55kW 410 440 470 6-∅8 450 410 400 320 246 660 4-15x25 38
80-4-0.75kW 410 440 470 6-∅8 450 410 400 320 246 660 4-15x25 39
5C 90S-4-1.1kW 510 540 570 6-∅10 505 455 500 420 295 770 4-15x25 56
90L-4-1.5kW 510 540 570 6-∅10 505 455 500 420 295 770 4-15x25 57
100L-4-2.2kW 510 540 570 6-∅10 505 455 500 420 295 770 4-15x25 64
6C 90L-4-1.5kW 610 645 670 6-∅11 505 455 600 500 348 900 4-15x25 69
100L-4-2.2kW 610 645 670 6-∅11 505 455 600 500 348 900 4-15x25 76
100L-4-3kW 610 645 670 6-∅11 505 455 600 500 348 900 4-15x25 80
7C 100L-4-3kW 710 750 790 8-∅11 555 505 700 600 408 1010 4-15x25 117
8C 112M-4-4kW 810 850 890 8-∅11 555 505 800 700 458 1130 4-15x25 137
9C 132S-4-5.5kW 910 950 1010 10-∅11 720 650 850 700 530 1270 4-15x25 208
10C 132M-6-4kW 1010 1050 1090 10-∅11 720 650 950 800 580 1320 4-15x25 250
12C 160M-6-7.5kW 1210 1260 1310 12-∅11 850 780 1150 1000 670 1470 4-15x25 364
