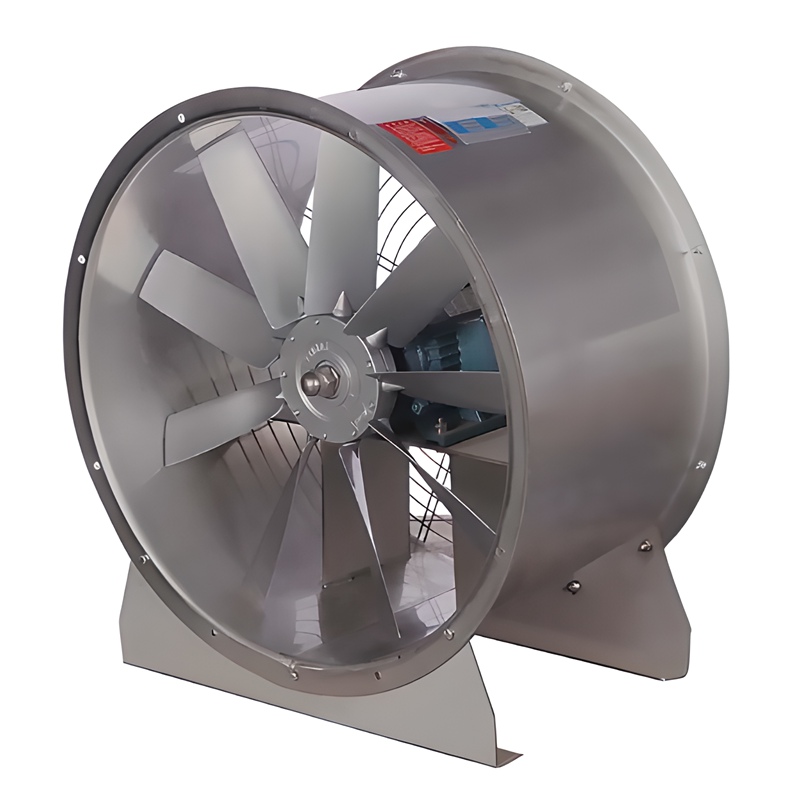

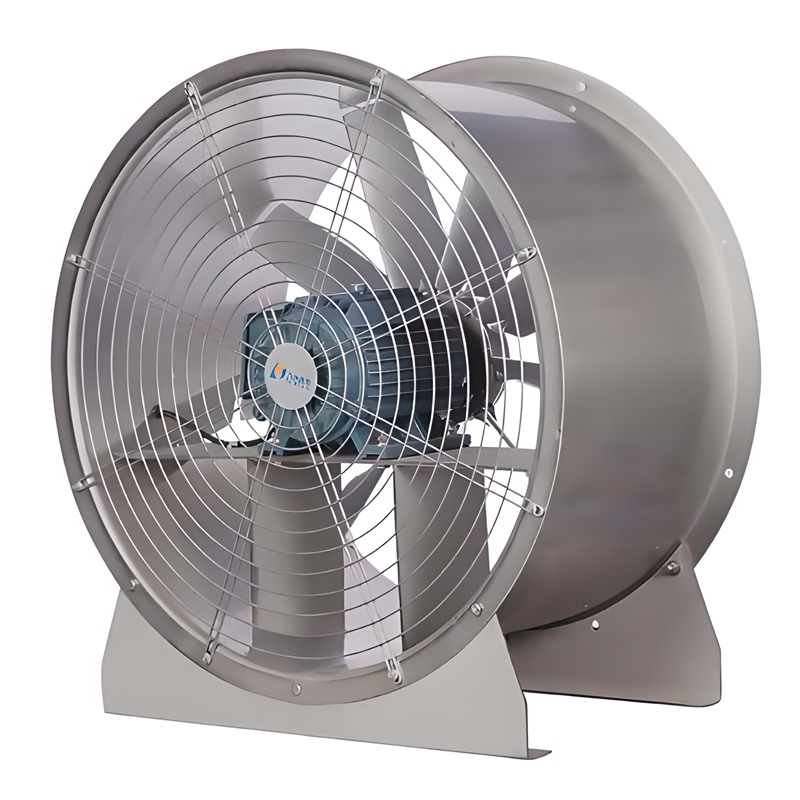

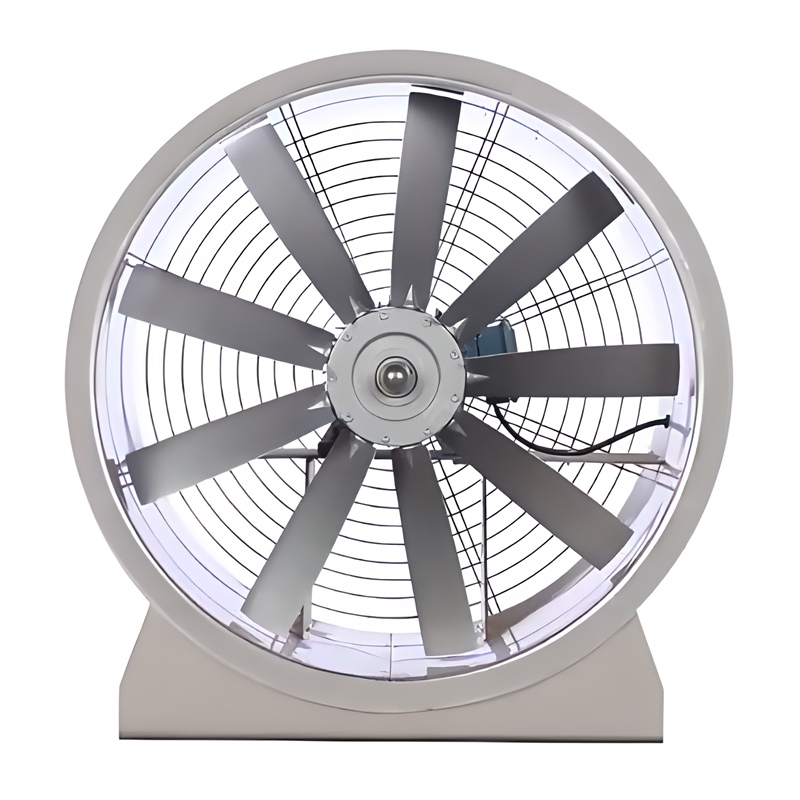

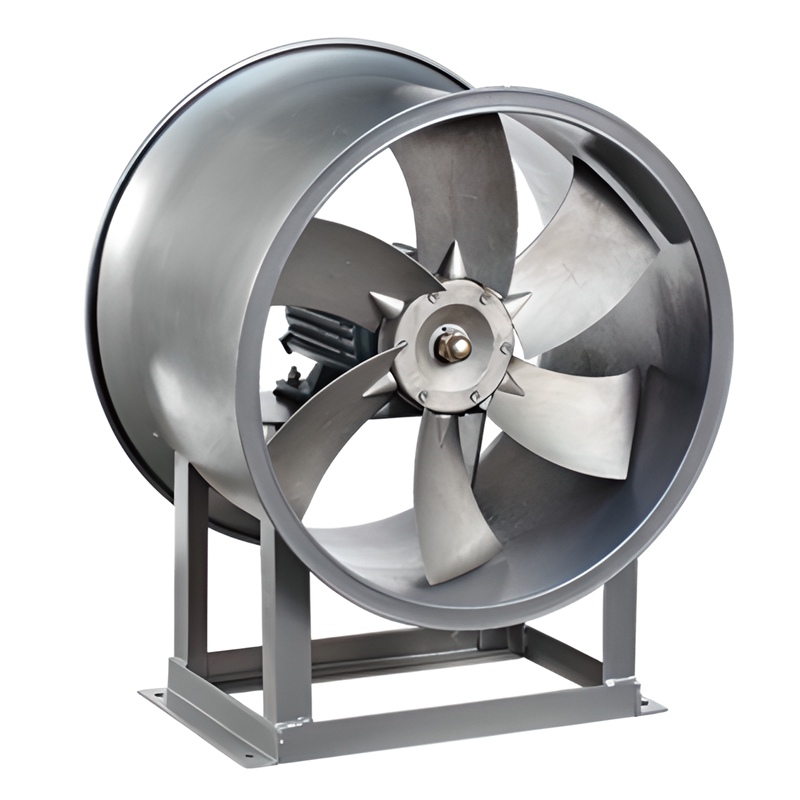

Industrial Exhaust Axial Flow Fan for ventilation is a compact air-moving device built with a rational structure, low-noise operation, high efficiency, and strong blades for stable airflow. It supports reliable air exchange in building ventilation systems and other general exhaust applications.
Type :
Axial Flow FanPayment :
T/TOrder(MOQ) :
1 PCShipping Port :
GuangZhou, FoShanLead Time :
7-15 daysProduct Origin :
ChinaIndustrial Exhaust Axial Flow Fan for ventilation
Industrial Exhaust Axial Flow Fan for ventilation is a compact air-moving device built with a rational structure, low-noise operation, high efficiency, and strong blades for stable airflow. It supports reliable air exchange in building ventilation systems and other general exhaust applications.
Advantages
1. Compact structure for the Industrial Axial Flow Fan.
2. Available in various materials for different usage conditions: Mild steel, Stainless Steel #304/#316/#316L, Aluminum Alloy.
3. Air performance parameters tested for accurate and reliable data.
4. Equipped with a 400-ton die-casting Aluminum alloy impeller.
5. Provides high performance.
Applications
1. Suitable for building ventilation systems, firefighting, and air circulation.
2. Ideal for filtration and drying equipment, food processing, painting rooms, and medical processing.
| Model | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Noise dB(A) |
| 3A | 0.25 | 220/380 | 1400 | 1000~2000 | 52~26 | ≤62 |
| 3.5A | 0.37 | 220/380 | 1400 | 2000-3000 | 82~39 | ≤68 |
| 4A | 0.55 | 220/380 | 1400 | 2685~5000 | 173~118 | ≤74 |
| 5A | 0.75 | 220/380 | 1400 | 5434-8273 | 172-123 | ≤76 |
| 1.5 | 380 | 1400 | 5707~9644 | 228-167 | ≤79 | |
| 0.37 | 380 | 910 | 1722~5090 | 86~73 | ≤73 | |
| 6A | 2.2 | 220/380 | 1420 | 14000 | 173 | ≤84 |
| L.1 | 380 | 910 | 6933~10182 | 151~140 | ≤76 | |
| 7A | 3 | 380 | 1420 | 14979~22000 | 359~150 | ≤87 |
| 1.5 | 380 | 960 | 14000 | 120 | ≤80 | |
| 1.1 | 380 | 720 | 10575 | 100 | ≤78 | |
| 8A | 4 | 380 | 1450 | 9000-25000 | 420~235 | ≤89 |
| 2.2 | 380 | 960 | 5875~16319 | 278~100 | ≤84 | |
| 9A | 5.5 | 380 | 1450 | 25000~35000 | 296~210 | ≤89 |
| 3 | 380 | 960 | 26000 | 248 | ≤88 | |
| 10A | 4 | 380 | 960 | 36889 | 250 | ≤89 |
| 12A | 5.5 | 380 | 960 | 44731 | 260 | ≤91 |
| Model | Power(kW) | Flange | Dimension | Weight(Kg) | ||||||||||
| ∅1 | ∅2 | ∅3 | ∅4 | N-∅d | L1 | L2 | L3 | L4 | L5 | H | N-∅d2 | |||
| 3.0A | 0.25kW | 310 | 330 | 360 | 370 | 3-∅8 | 330 | 240 | 180 | 310 | 285 | 275 | 4-10 | 15 |
| 3.5A | 0.37kW | 360 | 380 | 410 | 420 | 4-∅8 | 330 | 250 | 190 | 360 | 325 | 0 | 4-15x25 | 21 |
| 4A | 0.55kW | 410 | 430 | 460 | 485 | 4-∅8 | 350 | 250 | 190 | 400 | 365 | 330 | 4-15x25 | 25 |
| 5A | 0.75kW | 510 | 530 | 565 | 585 | 4-∅8 | 410 | 300 | 240 | 500 | 465 | 410 | 4-15x25 | 32 |
| 0.37kW | ||||||||||||||
| 1.5kW | 49 | |||||||||||||
| 6A | 2.2kW | 610 | 635 | 665 | 695 | 6-∅11 | 435 | 320 | 260 | 650 | 615 | 450 | 4-15x25 | 66 |
| 1.1kW | 60 | |||||||||||||
| 7A | 3kW | 710 | 750 | 780 | - | 8-∅11 | 425 | - | 375 | 750 | 715 | 450 | 4-15x25 | 81 |
| 1.5kW | 72 | |||||||||||||
| 1.1kW | 77 | |||||||||||||
| 8A | 4kW | 810 | 850 | 890 | - | 8-∅11 | 425 | - | 375 | 850 | 800 | 550 | 4-15x25 | 105 |
| 2.2kW | 103 | |||||||||||||
| 9A | 5.5kW | 910 | 950 | 990 | - | 8-∅11 | 550 | - | 490 | 950 | 900 | 630 | 4-15x25 | 154 |
| 3kW | 149 | |||||||||||||
| 10A | 4kW | 1010 | 1050 | 1090 | - | 8-∅11 | 550 | - | 490 | 1050 | 1000 | 685 | 4-15x25 | 176 |
| 12A | 5.5kW | 1210 | 1260 | 1310 | - | 8-∅11 | 650 | - | 570 | 1250 | 1200 | 780 | 4-15x25 | 232 |
