Kitchen Exhaust Ventilation Centrifugal Fan is a kitchen ventilation device with an adjustable mounting angle, featuring low noise, high air volume, and easy-to-clean design.
Type :
Centrifugal FanPayment :
T/TOrder(MOQ) :
1 PCShipping Port :
GuangZhou, FoShanLead Time :
7-15 daysProduct Origin :
ChinaKitchen Exhaust Ventilation Centrifugal Fan

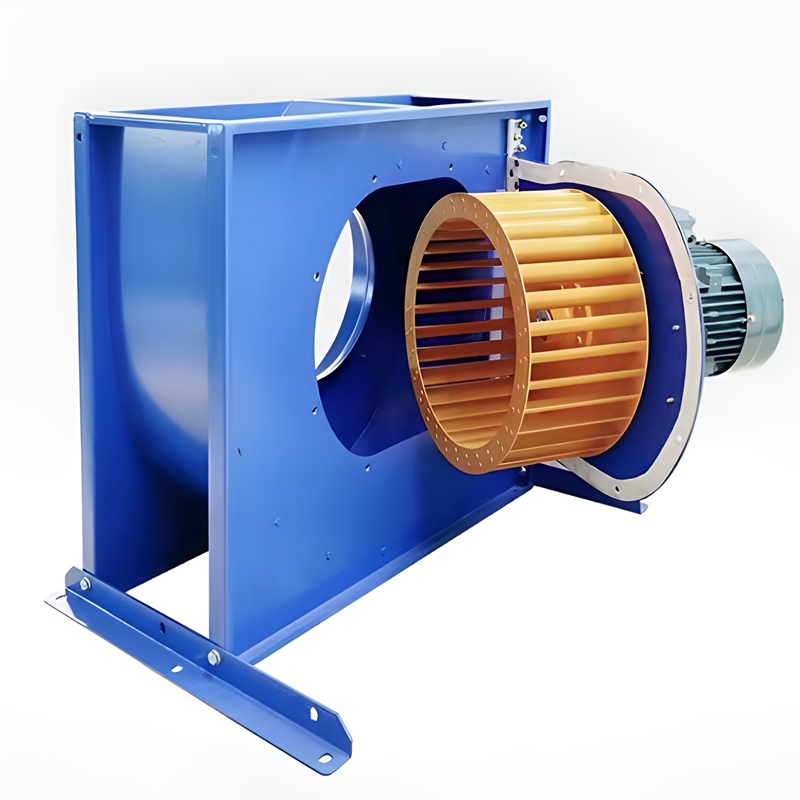

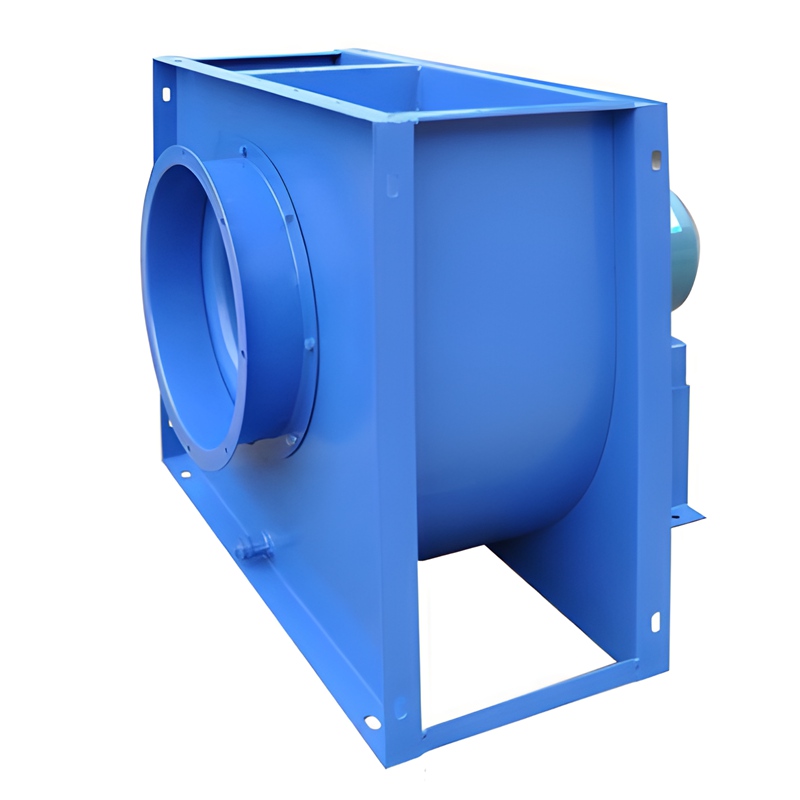

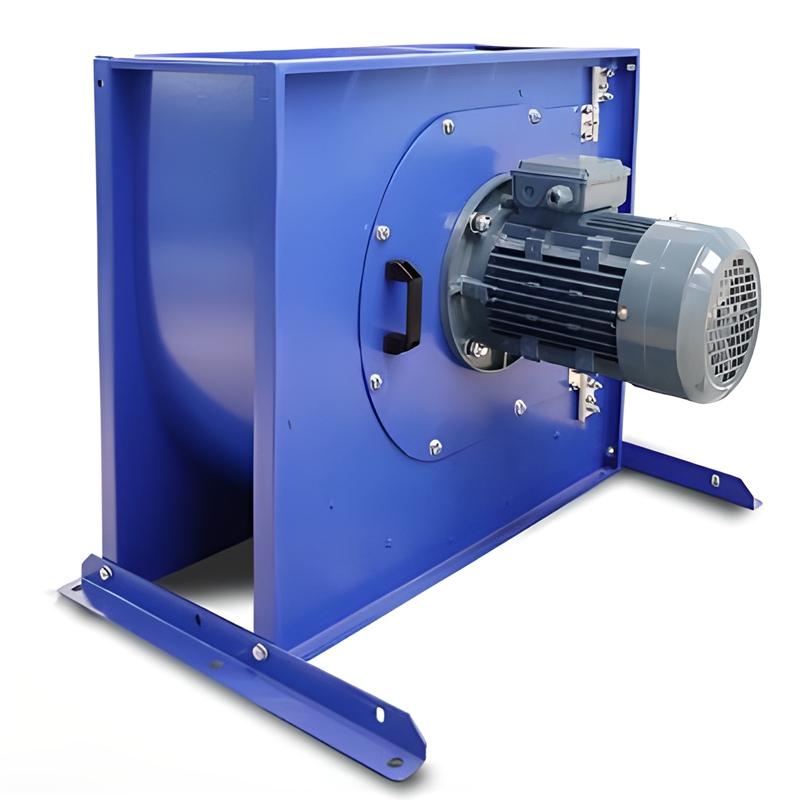

Kitchen Exhaust Ventilation Centrifugal Fan is our application and development of the "LAV" licensing impeller design technology. Point at problem that the impeller is difficult to eliminate the oil fume, we have made improvements to produce a fan that addresses this problem. The fan utilizes advanced technology and design expertise to offer several benefits, including a compact structure, strong suction, stable operation, high efficiency, energy savings, low noise, and easy installation. It is commonly used for transporting various types of air that are not corrosive, hypergolic, or sticky.
Advantages
1. We have developed a new type of impeller for Kitchen Centrifugal Fan .

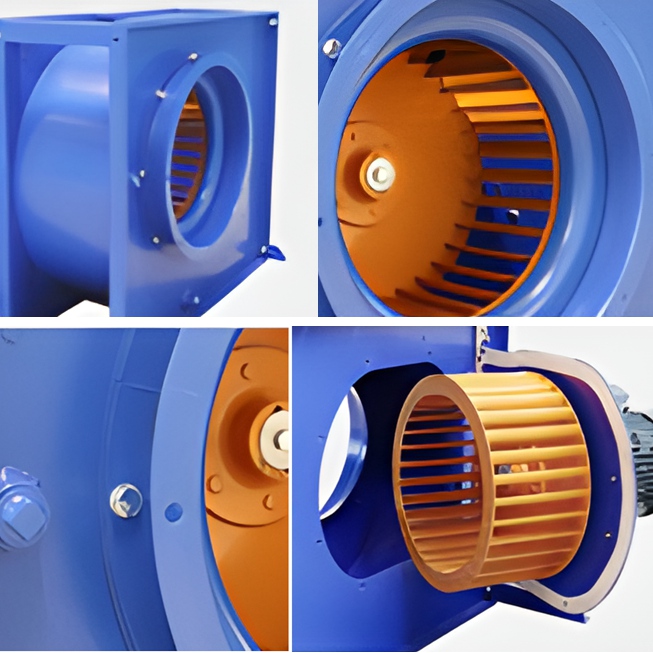

2. The impeller generates high wind pressure and has a large flow capacity. The impeller can be opened, easy installation and maintenance.
3. The mounting angle of the fan can be adjusted to 0°, 90°, 180°, and 270°.
4. The motor features 100% copper wiring, and the impeller and base are of high quality.
5. We offer customization options for voltage, frequency, and materials used.
Applications
Used in industrial and mining enterprises, hotel, dining room or other public place, kitchen for air ventilation or smoke exhausting
| Model(N) | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Static pressure(Pa) |
| 2.8A | 0.75 | 220/380 | 1400 | 1625~3038 | 551~498 | 510~354 |
| 3.0A | 1.5 | 220/380 | 1450 | 2590~4563 | 668~505 | 582~239 |
| 3.5A | 3.0 | 220/380 | 1450 | 5048~7215 | 909~633 | 727~260 |
| 4.0A | 2.2 | 380 | 960 | 4301~7323 | 668~650 | 589~420 |
| 4.5A | 3.0 | 380 | 960 | 5389~9117 | 756~724 | 677~498 |
| 5.0A | 5.5 | 380 | 960 | 7912~13488 | 970~845 | 857~516 |
| 5.6A | 6.5 | 380 | 960 | 9126~16108 | 1039~887 | 919~533 |
| 6.0A | 7.5 | 380 | 960 | 11236~17513 | 1203~1139 | 1070~853 |

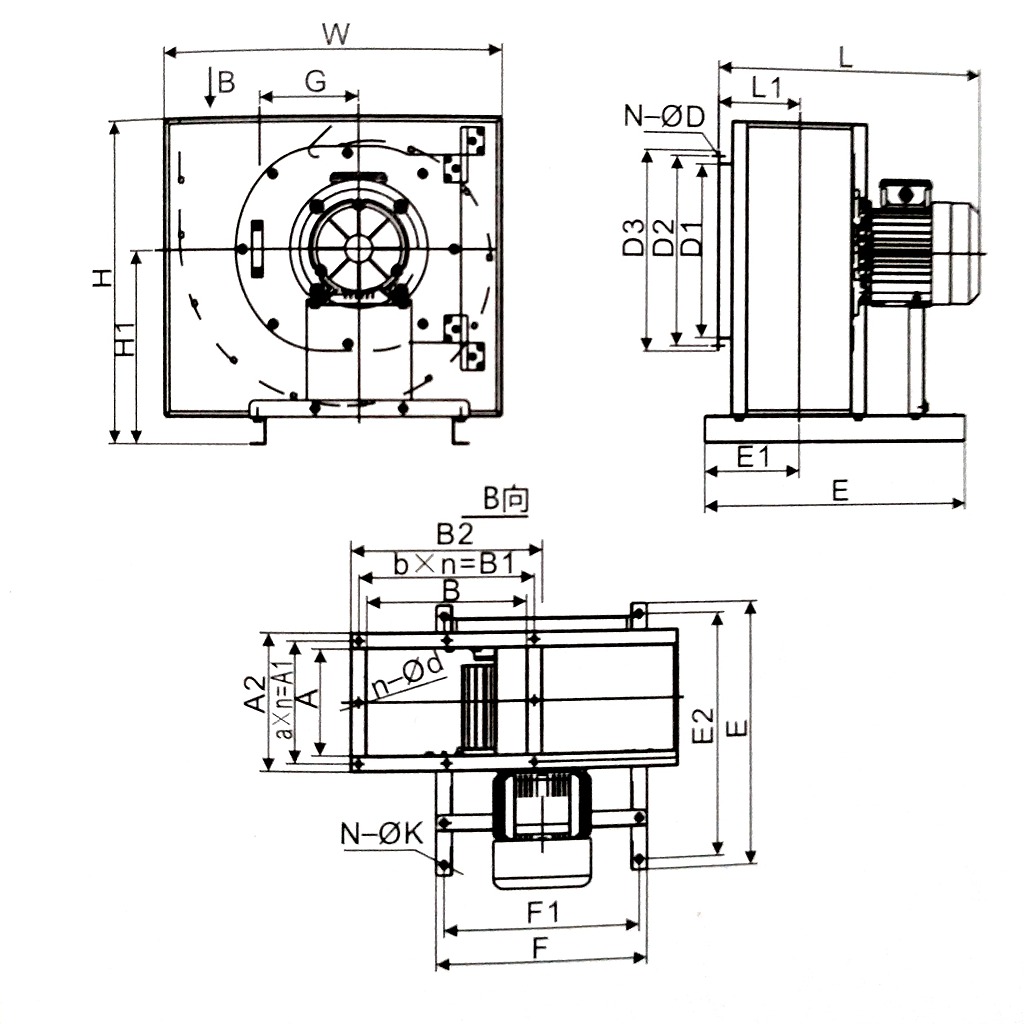

| Model | Inlet | Outlet | |||||||||
| D1 | D2 | D3 | N-∅D | A | a*n=A1 | A2 | B | b*n=B1 | B2 | n-∅d | |
| XCF-2.8A | ∅280 | ∅306 | ∅322 | 8-∅10 | 185 | 108*2=216 | 245 | 280 | 155*2=310 | 340 | 8-8*12 |
| XCF-3.0A | ∅320 | ∅350 | ∅365 | 8-∅10 | 200 | 115*2=230 | 260 | 300 | 165*2=330 | 360 | 8-8*12 |
| XCF-3.5A | ∅360 | ∅394 | ∅415 | 8-∅10 | 230 | 130*2=260 | 290 | 350 | 127*3=381 | 410 | 10-8*12 |
| XCF-4.0A | ∅400 | ∅440 | ∅460 | 8-∅10 | 260 | 150*2=300 | 340 | 400 | 110*4=440 | 480 | 12-8*12 |
| XCF-4.5A | ∅450 | ∅490 | ∅510 | 16-∅10 | 290 | 110*3=330 | 370 | 450 | 122.5*4=490 | 530 | 14-8*12 |
| XCF-5.0A | ∅500 | ∅550 | ∅570 | 16-∅10 | 320 | 120*3=360 | 400 | 500 | 135*4=540 | 580 | 14-8*12 |
| XCF-5.6A | ∅560 | ∅610 | ∅635 | 16-∅10 | 320 | 120*3=360 | 400 | 560 | 150*4=600 | 640 | 14-8*12 |
| XCF-6.0A | ∅500 | ∅550 | ∅574 | 16-∅10 | 350 | 130*3=390 | 430 | 600 | 107*6=642 | 680 | 18-8*12 |
Customization Capabilities
1. Drawing-Based Customization
Provide system or equipment drawings for accurate design alignment and quotation.
2. Parameter-Based Customization
Tailored by air volume, inlet/outlet temperature, structural dimensions, etc. On-site measurement is supported.
3. Technical Support
24/7 consultation on heat-exchange solutions and process parameter guidance.
