Quiet Operation Industrial Exhaust Ventilation Centrifugal Fan is a ventilation device available in multiple angles, featuring a sturdy structure, innovative design, and an attractive appearance.
Type :
Centrifugal FanPayment :
T/TOrder(MOQ) :
1 PCShipping Port :
GuangZhou, FoShanLead Time :
7-15 daysProduct Origin :

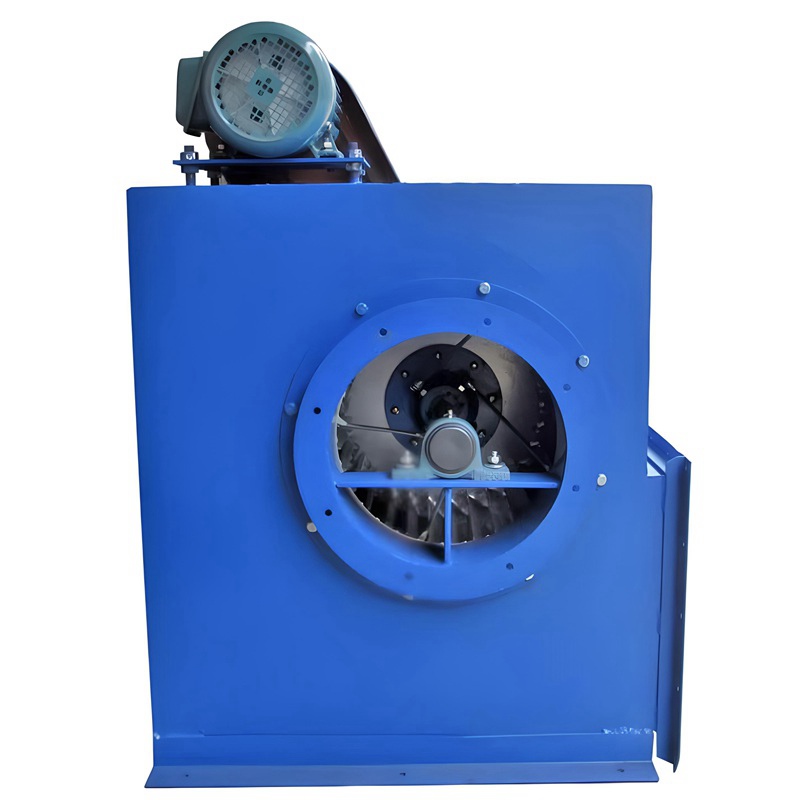

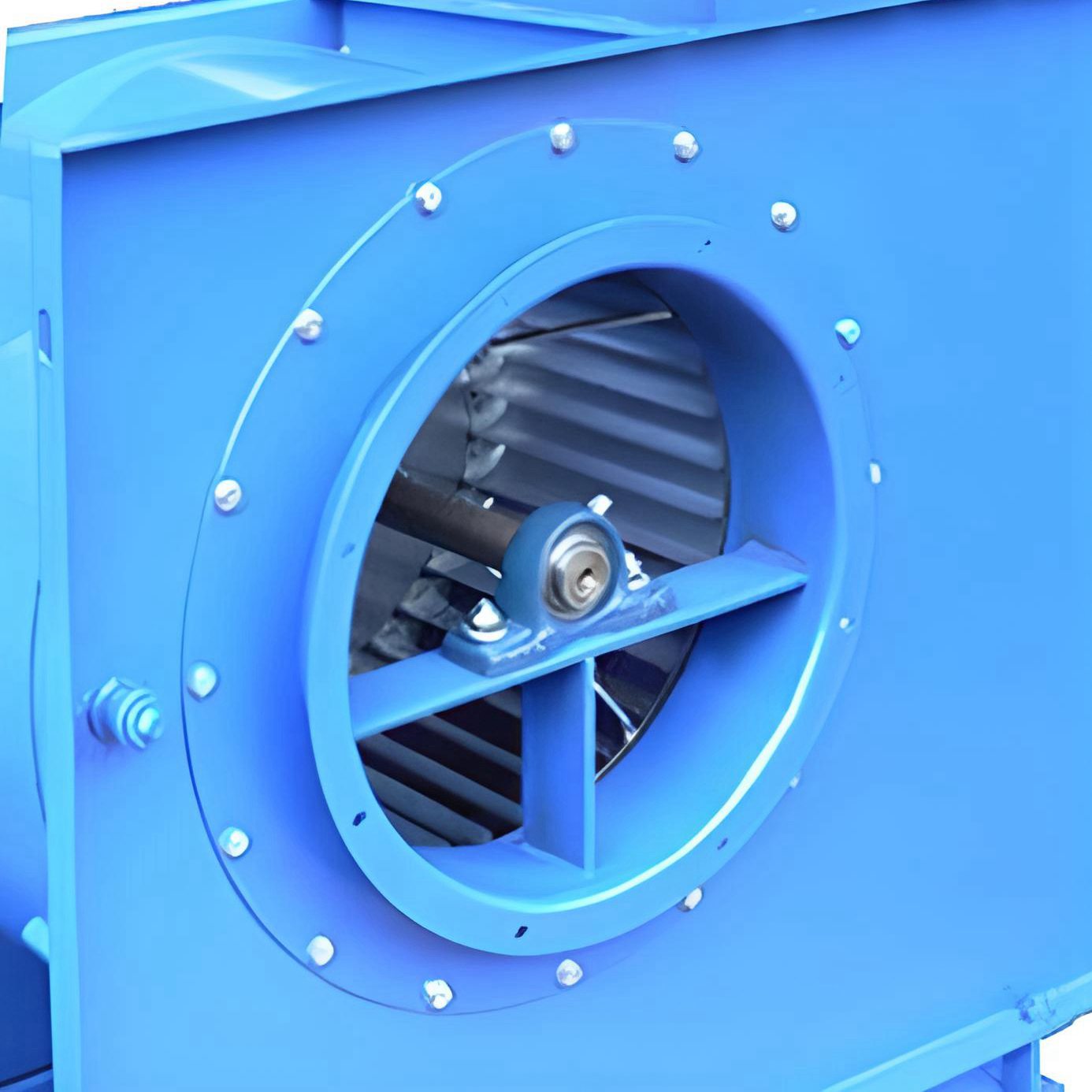

ChinaQuiet Operation Industrial Exhaust Ventilation Centrifugal Fan
Quiet Operation Industrial Exhaust Ventilation Centrifugal Fan is an upgraded version of the 11-62A centrifugal fan, offering a larger volume and lower noise levels. It features a sturdy structure, a new design, and an attractive appearance. This product is an excellent choice for ventilation in modern hotels, restaurants, and air-conditioning units. It is designed to handle air or other non-spontaneously combustible and non-explosive substances that are safe for humans. The transferred air should be free from adhesive materials and have a temperature not exceeding 80℃.
Advantages

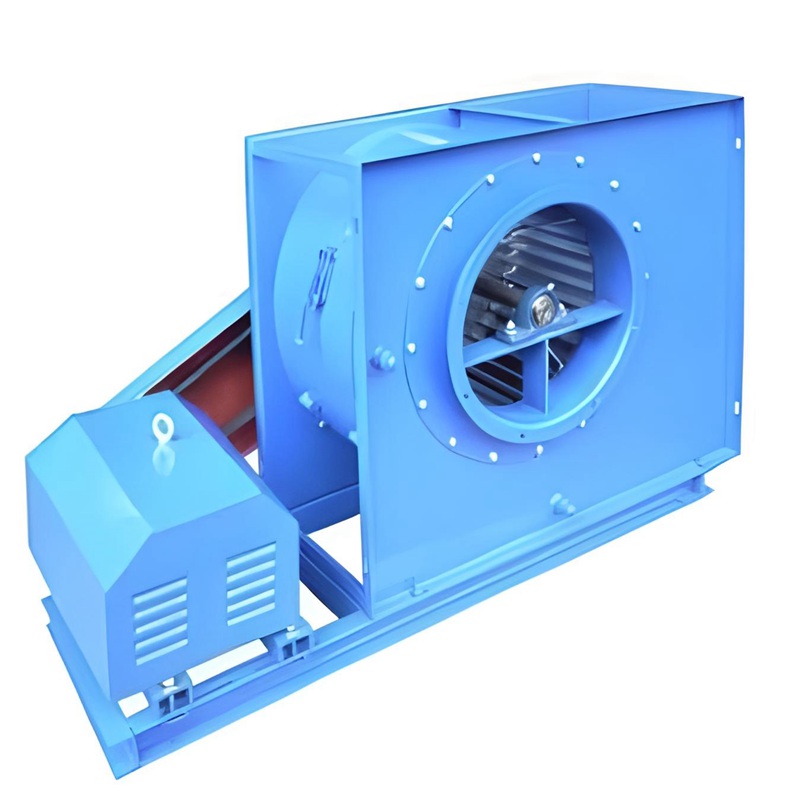

1. The Industrial Centrifugal Fan , the motor can be on top or on floor when produce it, Flexible installation.

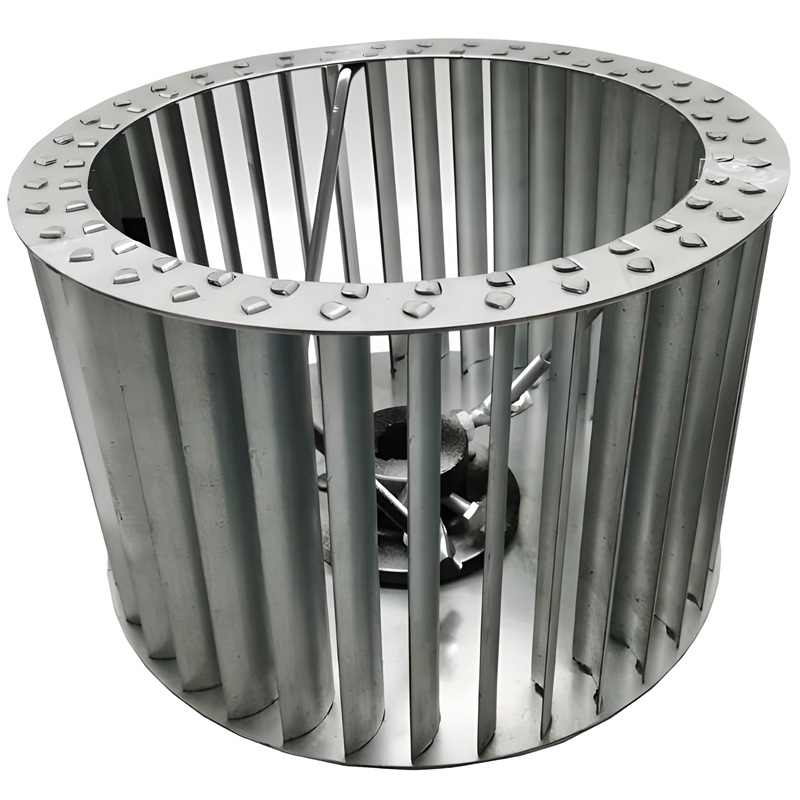

2. Impeller undergoes dynamic balancing tests, ensuring stable operation and reducing vibration and noise.
3. Advantages of multiple angle options, and easy installation and maintenance.
4. Fan performance tested using an airway, providing accurate and reliable data.
5. Fan material can be customized to meet specific needs.
6. Acceptance of customization requests.
Applications
The fan can be used for various applications, such as general ventilation, process ventilation, handling contaminated air streams, mining ventilation, air-conditioning, and fumes duct or smoke removal.
| Model(N) | Power(kW) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) | Noise dB(A) |
| 3E | 1.5 | 1420 | 1959~4162 | 469~584 | ≤74 |
| 3.5E | 1.1 | 960 | 2648~4303 | 353~265 | ≤70 |
| 3 | 1420 | 3917~6365 | 772~582 | ≤79 | |
| 4E | 2.2 | 850 | 3984~7703 | 94~276 | ≤72 |
| 3 | 960 | 4500~8700 | 502~352 | ≤74 | |
| 5E | 4 | 820 | 4841~8542 | 628~560 | ≤78 |
| 5.5 | 960 | 5667~10000 | 861~767 | ≤81 | |
| 6E | 7.5 | 720 | 7000~16000 | 749~413 | ≤80 |
| 6.5E | 7.5 | 650 | 8035~18364 | 716~395 | ≤81 |
| 11 | 720 | 8900~20342 | 879~485 | ≤83 | |
| 7E | 11 | 650 | 10035~22937 | 830~458 | ≤83 |
| 15 | 720 | 11116~25407 | 1019~562 | ≤85 | |
| 7.5E | 11 | 600 | 13846~23077 | 924~507 | ≤83 |
| 15 | 650 | 15000~25000 | 1085~595 | ≤85 | |
| 8E | 15 | 560 | 12923~28000 | 894~700 | ≤84 |
| 18.5 | 610 | 14077~30500 | 1061~831 | ≤86 | |
| 30 | 720 | 16616~36000 | 1478~1158 | ≤89 |

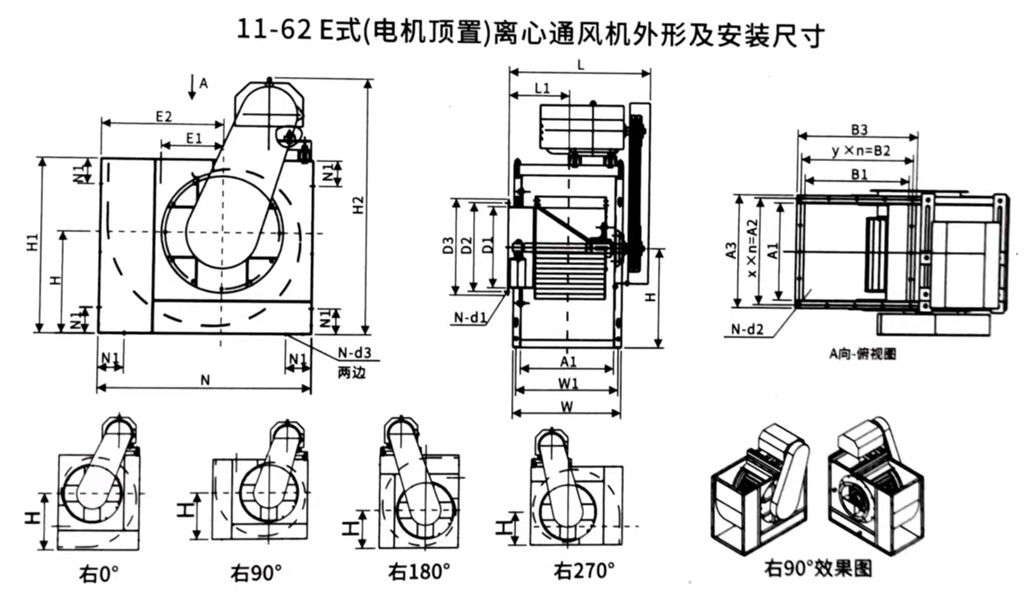

| Model | Inlet | Outlet | |||||||||
| D1 | D2 | D3 | N-D1 | A1 | XxN=A2 | A3 | B1 | YxN=B2 | B3 | N-D2 | |
| 3E | 216 | 250 | 280 | 8-∅10 | 290 | 80x4=320 | 350 | 280 | 77.5x4=310 | 340 | 16-∅9 |
| 3.5E | 270 | 306 | 340 | 8-∅10 | 300 | 82.5x4=330 | 360 | 360 | 97.5x4=390 | 420 | 16-∅9 |
| 4E | 320 | 350 | 380 | 8-∅10 | 370 | 100x4=400 | 430 | 400 | 107.5x4=430 | 460 | 16-∅10 |
| 5E | 400 | 450 | 490 | 8-∅10 | 370 | 100x4=400 | 430 | 400 | 107.5x4=430 | 460 | 16-∅10 |
| 6E | 495 | 540 | 600 | 12-∅10 | 370 | 102.5x4=410 | 450 | 470 | 102x5=510 | 550 | 18-∅10 |
| 6.5E | 560 | 600 | 650 | 12-∅10 | 400 | 110x4=440 | 480 | 550 | 118x5=590 | 630 | 18-∅10 |
| 7E | 600 | 650 | 700 | 12-∅10 | 400 | 112.5x4=450 | 500 | 600 | 130x5=650 | 700 | 18-∅10 |
| 7.5E | 650 | 700 | 750 | 12-∅10 | 420 | 117.5x4=470 | 520 | 645 | 139x5=695 | 745 | 18-∅10 |
| 8E | 700 | 750 | 800 | 12-∅12 | 450 | 100x5=500 | 550 | 700 | 125x6=750 | 800 | 22-∅10 |
| base size | Dimension | ||||||||||
| W | W1 | N1 | N-D3 | N | E1 | E2 | L | L1 | H | H1 | H2 |
| 350 | 320 | 100 | 2-∅13 | 680 | 188 | 358 | 475 | 201 | 300 | 530 | 810 |
| 360 | 330 | 100 | 2-∅13 | 790 | 248 | 458 | 475 | 206 | 363 | 620 | 944 |
| 430 | 400 | 100 | 2-∅13 | 820 | 241 | 471 | 557 | 238 | 395 | 680 | 1004 |
| 430 | 400 | 100 | 2-∅13 | 920 | 319 | 546 | 554 | 231 | 453 | 780 | 1169 |
| 450 | 410 | 100 | 2-∅13 | 1020 | 307 | 582 | 630 | 277 | 500 | 900 | 1271 |
| 480 | 440 | 100 | 2-∅13 | 1180 | 364 | 679 | 649 | 288 | 585 | 1020 | 1460 |
| 500 | 450 | 100 | 2-∅13 | 1300 | 395 | 745 | 670 | 300 | 633 | 1110 | 1550 |
| 520 | 470 | 100 | 2-∅13 | 375 | 413 | 785 | 680 | 294 | 680 | 1200 | 1640 |
| 550 | 500 | 100 | 2-∅13 | 1400 | 398 | 798 | 738 | 308 | 700 | 1230 | 1712 |

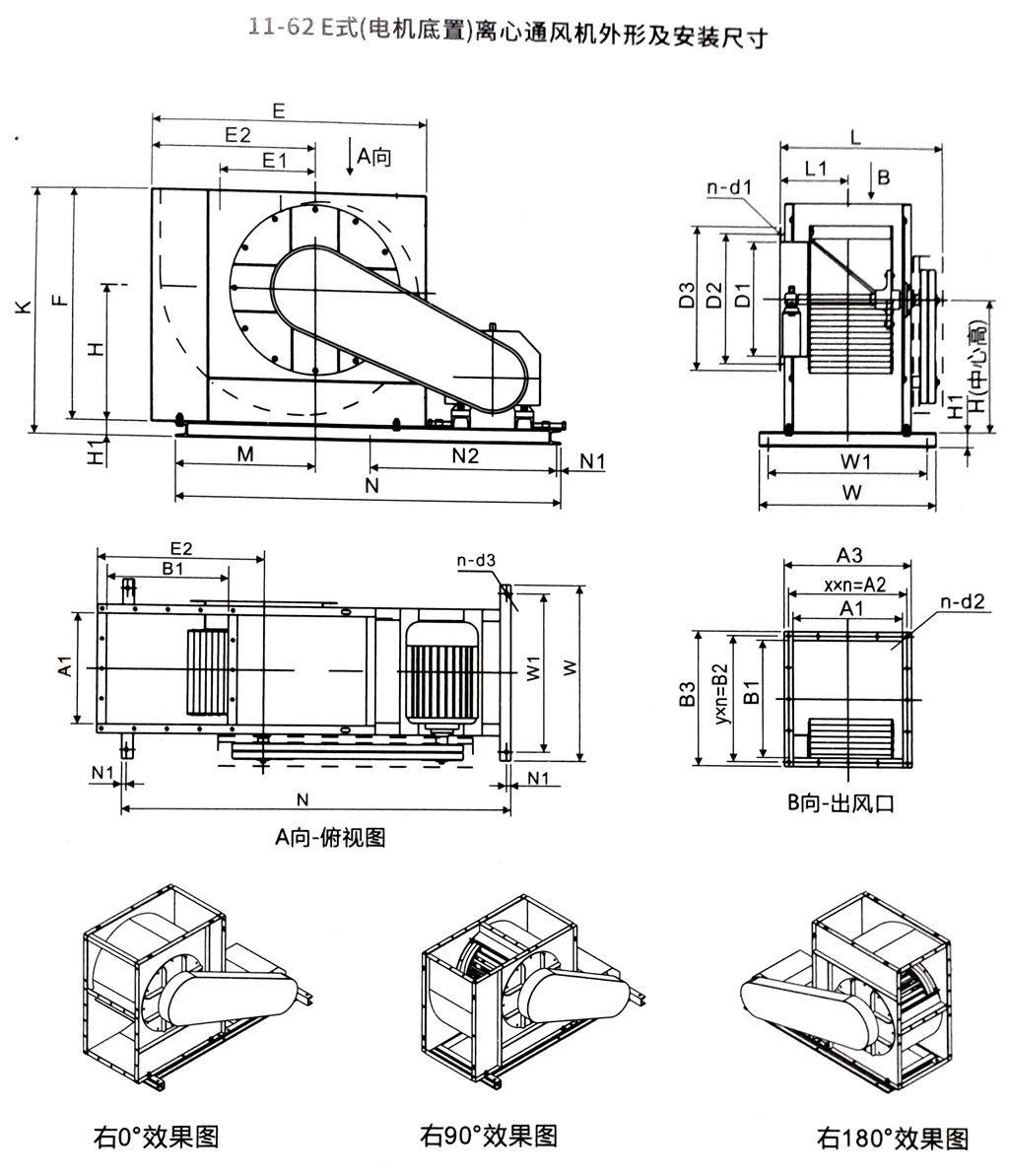

| Model | Inlet | Outlet | Dimension | ||||||||||||||
| D1 | D2 | D3 | n-d1 | A1 | xXn=A2 | A3 | B1 | yXn=B2 | B3 | n-d2 | W | W1 | N | N1 | N2 | n-d3 | |
| 3E | 216 | 250 | 280 | 8-∅10 | 290 | 80x4=320 | 350 | 280 | 77.5x4=310 | 340 | 16-∅9 | 520 | 460 | 1000 | 15 | 485 | 6-∅12 |
| 3.5E | 270 | 306 | 340 | 8-∅10 | 300 | 82.5x4=330 | 360 | 360 | 97.5x4=390 | 420 | 16-∅9 | 520 | 460 | 1100 | 15 | 535 | 6-∅12 |
| 4E | 320 | 350 | 380 | 8-∅10 | 370 | 100x4=400 | 430 | 400 | 107.5x4=430 | 460 | 16-∅10 | 600 | 540 | 1200 | 15 | 585 | 6-∅12 |
| 5E | 400 | 450 | 490 | 8-∅10 | 370 | 100x4=400 | 430 | 400 | 107.5x4=430 | 460 | 16-∅10 | 600 | 540 | 1300 | 15 | 635 | 6-∅12 |
| 6E | 495 | 540 | 600 | 12-∅10 | 370 | 102.5x4=410 | 450 | 470 | 102x5=510 | 550 | 18-∅10 | 610 | 550 | 1450 | 20 | 705 | 6-∅14 |
| 6.5E | 560 | 600 | 650 | 12-∅10 | 400 | 110x4=440 | 480 | 550 | 118x5=590 | 630 | 18-∅10 | 640 | 580 | 1650 | 20 | 805 | 6-∅14 |
| 7E | 600 | 650 | 700 | 12-∅10 | 400 | 112.5x4=450 | 500 | 600 | 130x5=650 | 700 | 18-∅10 | 700 | 640 | 1800 | 20 | 880 | 6-∅14 |
| 7.5E | 650 | 700 | 750 | 12-∅10 | 420 | 117.5x4=470 | 520 | 645 | 139x5=695 | 745 | 18-∅10 | 710 | 650 | 1900 | 20 | 930 | 6-∅14 |
| 8E | 700 | 750 | 800 | 12-∅10 | 450 | 100x5=500 | 550 | 700 | 125X6=750 | 800 | 22-∅10 | 750 | 690 | 1950 | 20 | 955 | 6-∅14 |
Customization Services
We provide comprehensive customized design servicesto ensure the heat exchanger perfectly fits your specific operational requirements and spatial constraints.
You can share your design drawings or key parameters (e.g., flue gas volume, inlet/outlet temperatures, pressure rating, space limitations), and our technical team will develop a tailored solution and quotation .
We adapt the size, materials, connection ports, and performance parametersbased on your needs. Additionally, we offer expert technical consultation throughout the process, from initial assessment to operational optimizations.
