The Industrial Wall-Mounted Exhaust Fan with Square Rain-Proof Shutter is a device for moving air efficiently through walls in factories, workshops, and commercial spaces. This wall exhaust fan works quietly, uses energy efficiently, and is simple to install, while the square rain-proof cover protects it from weather and dust.
Type :
Exhaust FanPayment :
T/TOrder(MOQ) :
1 PCShipping Port :
GuangZhou, FoShanLead Time :
7-15 daysProduct Origin :
ChinaIndustrial Wall-Mounted Exhaust Fan with Square Rain-Proof Shutter

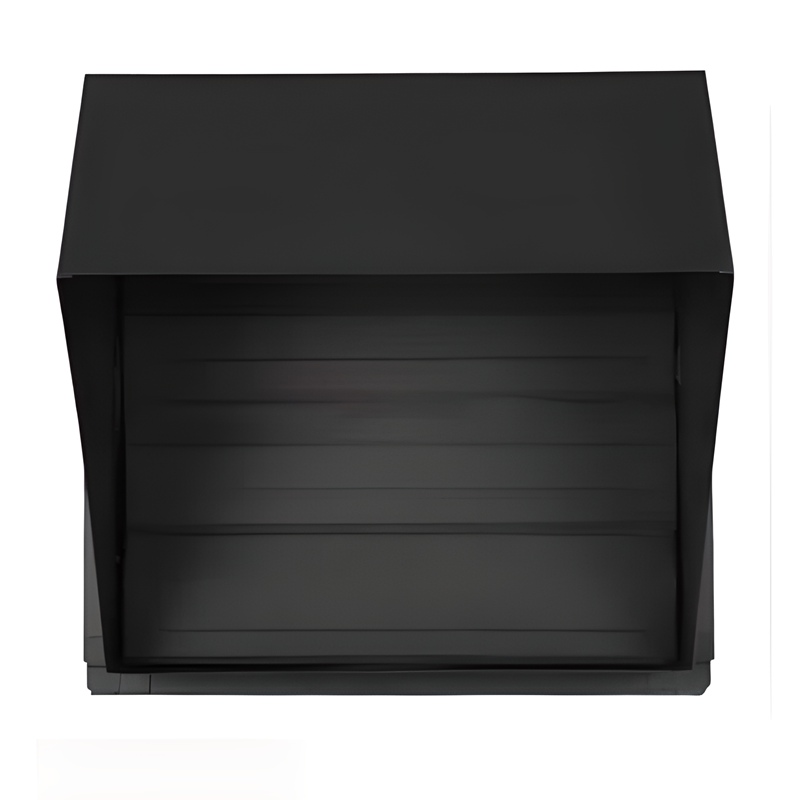

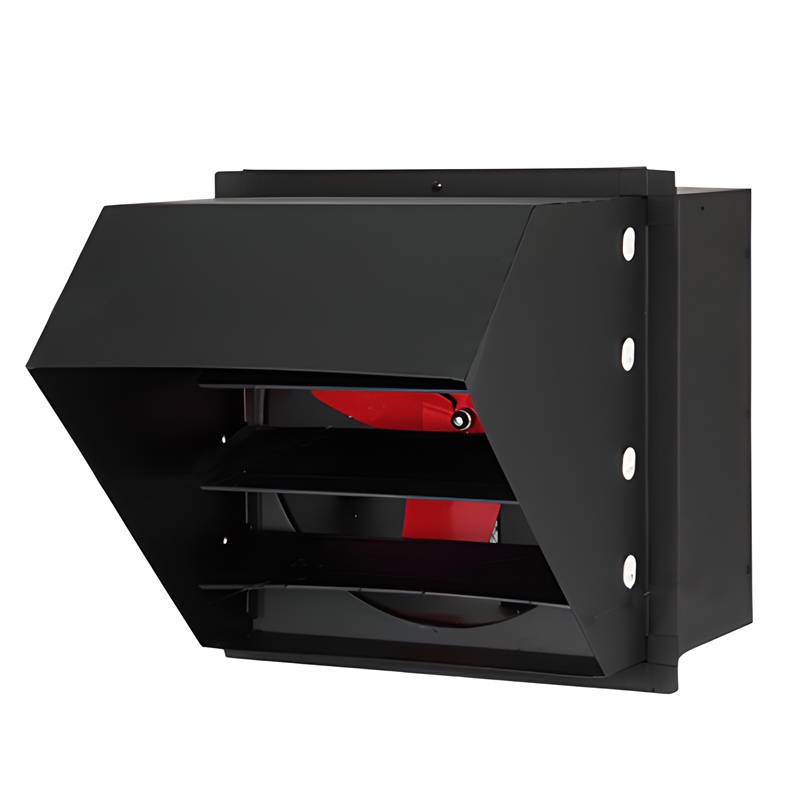

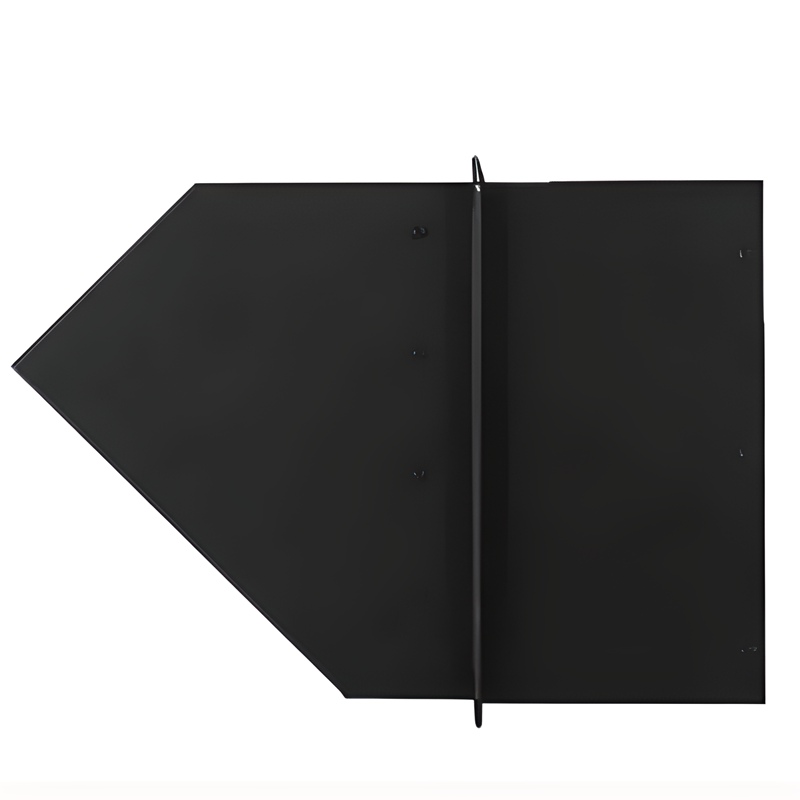

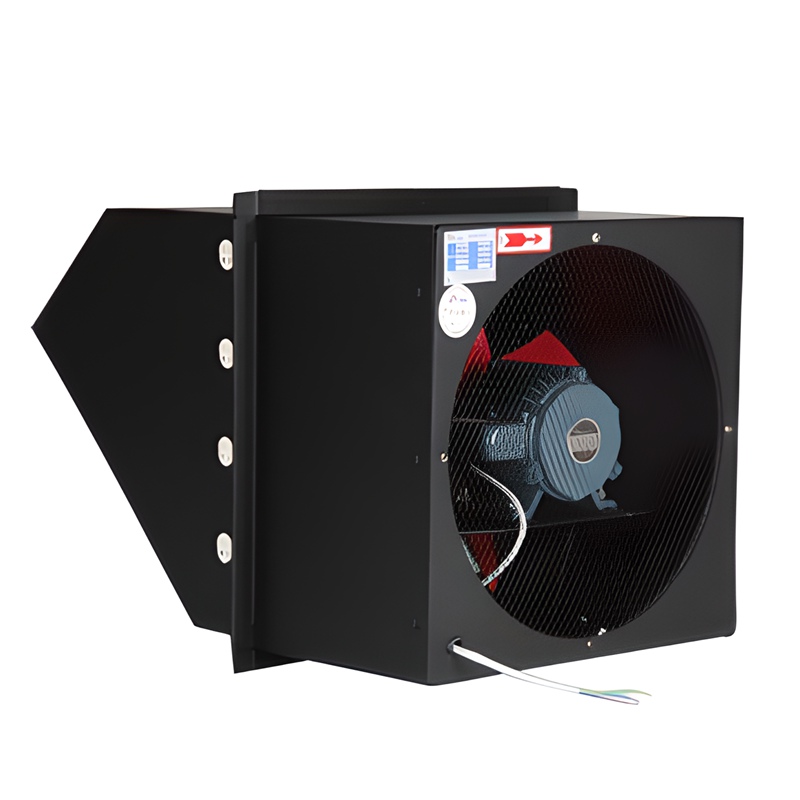

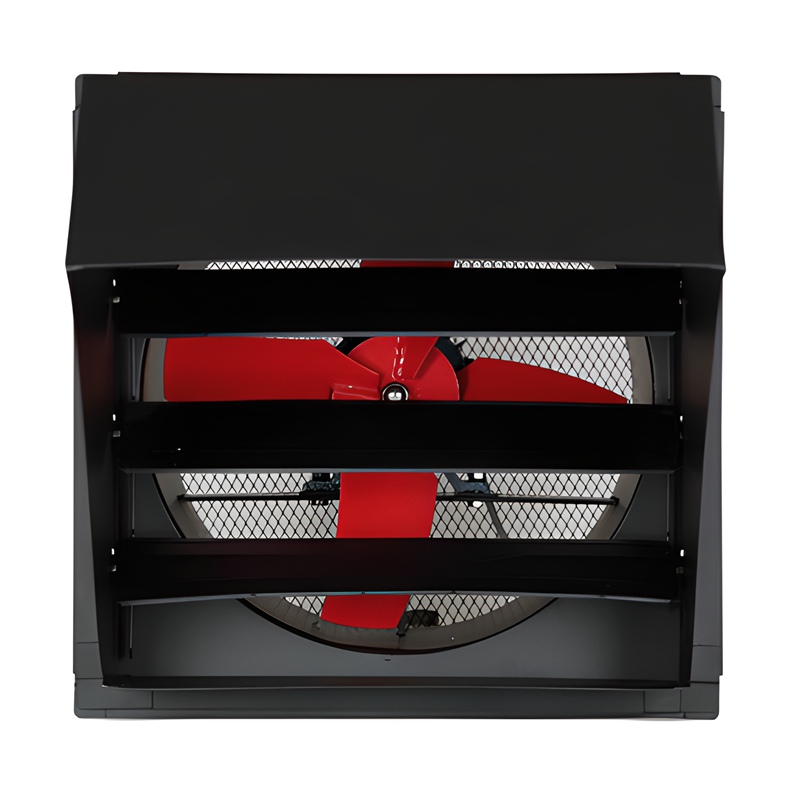

The Industrial Wall-Mounted Exhaust Fan with Square Rain-Proof Shutter is a device for moving air efficiently through walls in factories, workshops, and commercial spaces. This wall exhaust fan works quietly, uses energy efficiently, and is simple to install, while the square rain-proof cover protects it from weather and dust.
Key Features
1.Quiet Operation: Low-noise wall-type impeller with a direct-drive motor keeps airflow smooth without loud sound.
2.Sturdy Build: Square rain-proof shutter adds protection and durability, giving the fan a neat, professional look.
3.Easy to Install: Compact square casing fits concrete, brick, or lightweight steel walls without complex setup.
4.Energy-Saving: Optimized impeller design moves plenty of air while keeping power use low.
| Model | Power(kW) | Voltage(V) | Rotation(r/min) | Volume(m³/h) | Pressure(Pa) |
| 2.5A | 0.09 | 220/380 | 1400 | 1300 | 26 |
| 3A | 0.12 | 220/380 | 1400 | 1800 | 30 |
| 3.5A | 0.18 | 220/380 | 1400 | 2880 | 48 |
| 4A | 0.25 | 220/380 | 1400 | 4370 | 84 |
| 4.5A | 0.37 | 220/380 | 1400 | 5300 | 88 |
| 5A | 0.37 | 220/380 | 1400 | 5760 | 88 |
| 5.6A | 0.55 | 220/380 | 1400 | 8350 | 110 |
| 6A | 1.1 | 220/380 | 1450 | 12294 | 187 |
| 7A | 2.2 | 220/380 | 1450 | 22170 | 239 |

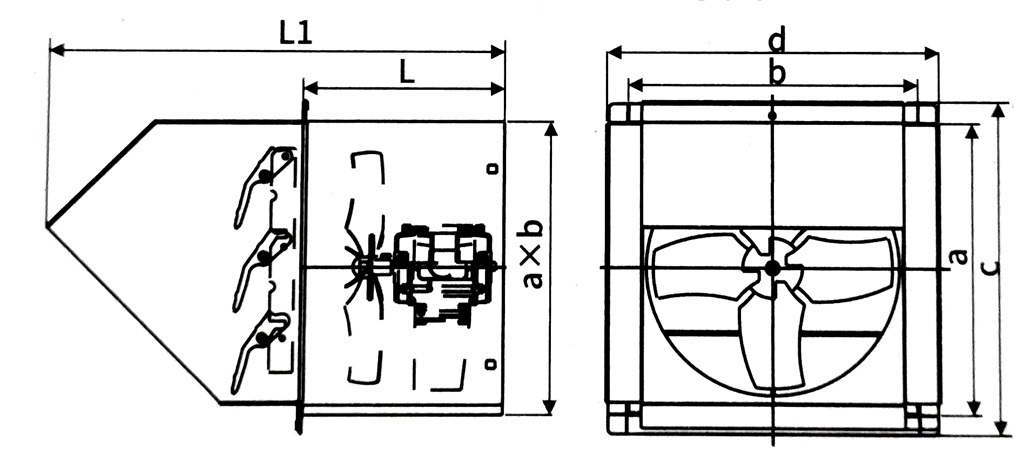

| Model | a | b | c | d | L | L1 | Weight(Kg) |
| 2.5A | 300 | 300 | 340 | 342 | 208 | 470 | 13 |
| 3A | 350 | 350 | 390 | 392 | 208 | 520 | 15 |
| 3.5A | 400 | 400 | 440 | 442 | 218 | 570 | 19 |
| 4A | 450 | 450 | 490 | 492 | 218 | 605 | 22 |
| 4.5 | 500 | 500 | 540 | 542 | 258 | 669 | 29 |
| 5A | 550 | 550 | 590 | 592 | 258 | 690 | 31 |
| 5.6A | 600 | 600 | 640 | 642 | 258 | 709 | 36 |
| 6A | 680 | 680 | 720 | 720 | 381 | 907 | 70 |
| 7A | 790 | 790 | 830 | 830 | 435 | 1015 | 105 |
Applications
This industrial wall-mounted exhaust fan is used for:
Ventilating workshops, factories, and warehouses
Providing fresh airflow in commercial buildings
Protecting indoor air systems from rain or external elements
Wall-mounted setups in HVAC systems for steady air circulation
Customization Services
1.Drawing-based customization:Send design/equipment drawings to our team for personalized quotation
2.Parameter-based customization:Customize by air volume, inlet/outlet temperature, shape size, etc.; on-site measurement available
3.Technical support:Provide 24/7 consultation on process parameters and professional scheme guidance
