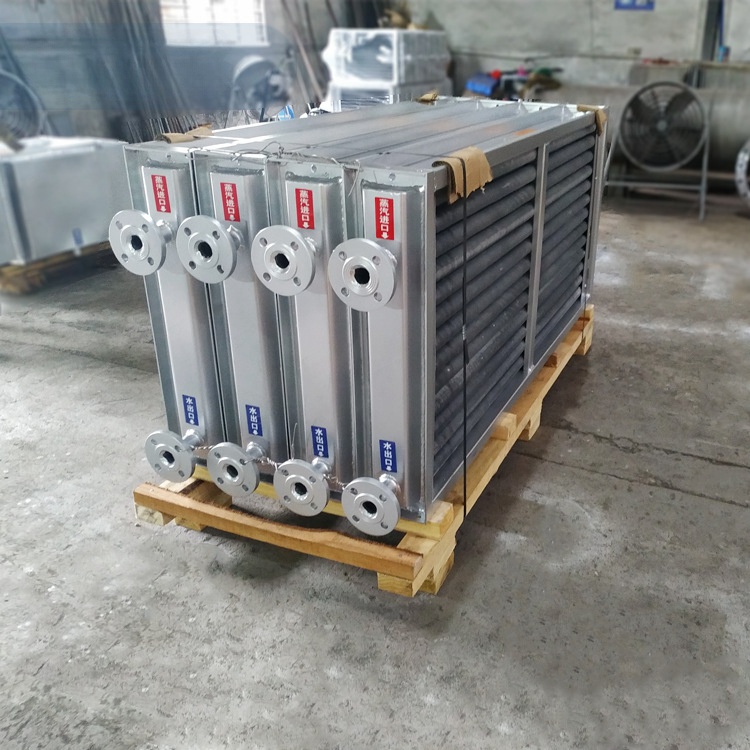

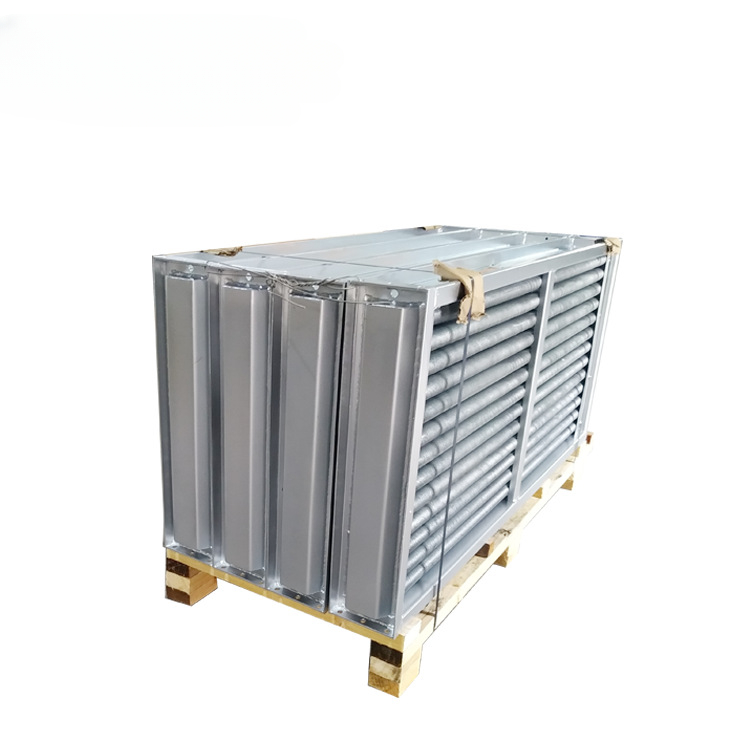

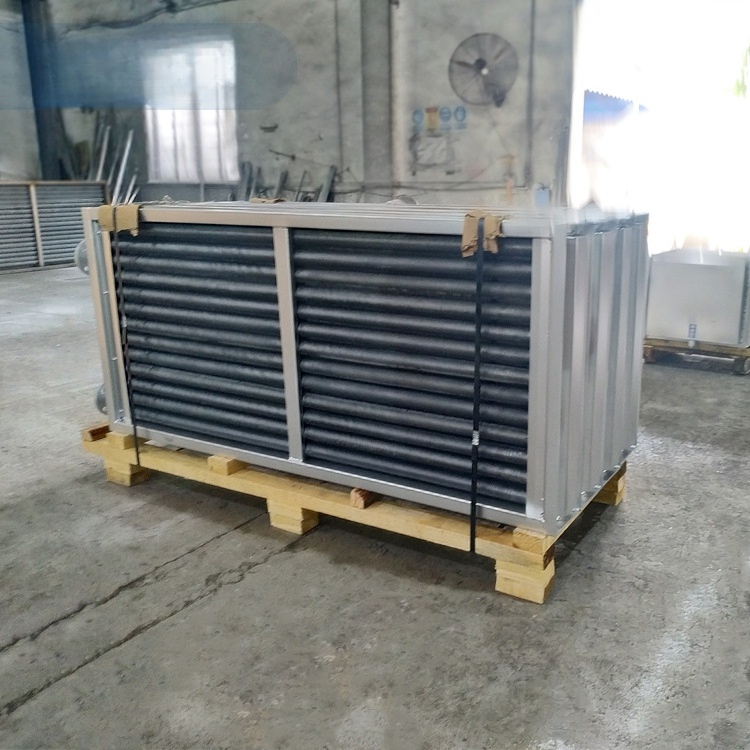

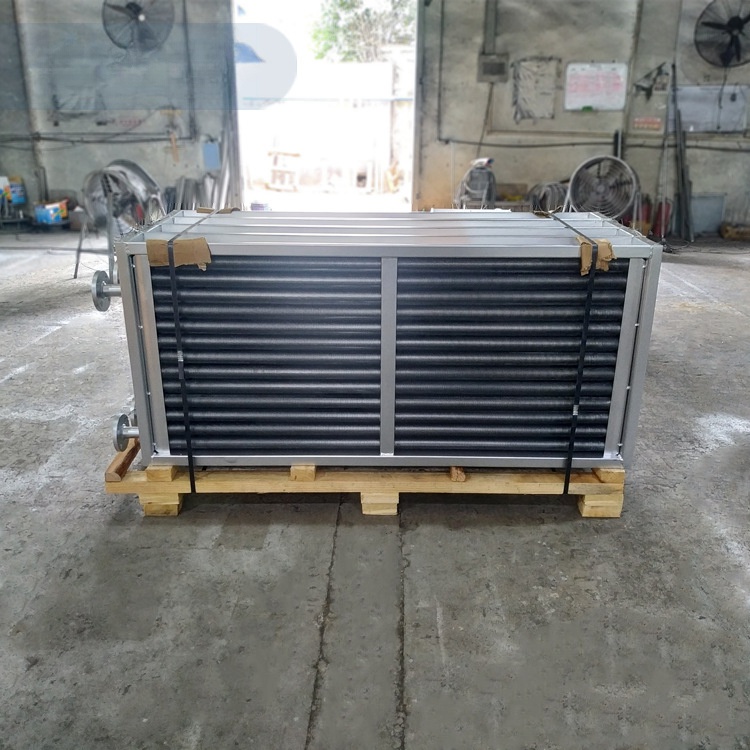

Factory Boiler Heat Exchanger Fin Tube Radiator YF19

Heat Exchanger Steam Drying Room Radiator Fin Tube Radiator Factory Boiler Matching Heat-Exchangers

several material available:

carbon steel, stainless steel 304, copper, aluminum

Air radiator

The product adopts seamless steel pipe (carbon steel or stainless steel) finned tube, the advantage of finned tube is: when the heat source or cold source is liquid, such as steam, water, thermal oil. When it is necessary to heat gas or cool it with gas, a larger heat exchange area is required. The area of the finned tube is several times or even 10 times the area of the ordinary light tube. At this time, the heat transfer efficiency of the equipment is not only increased, but also the heat transfer cost is greatly reduced.

The spiral fin radiator is mainly used for air heating in the drying system, which is the main equipment in the hot air device. The heat medium used by the radiator can be steam or hot water, or thermal oil. The working pressure of the steam is generally not more than 0.8Mpa, and the temperature of the hot air is below 150C. Fin-type digital heater and by the air flow between the three rows of parallel spiral fin tube to consist of SRZ type fin tube processing process is to use the 0.5*10 mm steel strip with mechanical winding method, wound on the 18 mm seamless steel pipe, and then heat slow zinc, can also be made of stainless steel and stainless steel belt stainless steel radiator, The SRL radiator is a fin radiator rolled with steel pipe and aluminum strip. The radiator area per unit length is larger than the SRZ type. Can be customized non-standard processing.

1. there are design drawings and equipment drawings, only need to send your drawings to our customer service or technical staff, we will be in accordance with your requirements for the program quotation!

2. Air volume, air inlet condition, shape size, chilled water inlet temperature, cooling supply (or air outlet condition requirements) and other parameters provided by the design drawings, or provide the corresponding parameters according to our measurement drawing.

3. as long as the process requirements of your process parameters to inform our customer service or technical personnel, our company can provide technical advice at any time!
