The Shell and Tube Heat Exchanger provides reliable thermal exchange between liquid media such as water, oil, or coolant. Each unit is built with a fixed tube plate, a floating head, a removable tube bundle, and an accessible water chamber for easy cleaning, inspection, and maintenance.

Available materials include carbon steel, stainless steel 304, copper, and aluminum, selected according to system conditions and working environment.

Key Features

1.Efficient Heat TransferSmooth, bare-tube design ensures high external heat transfer and strong resistance to fouling.

2.Compact and High-Performance Structure:The copper tubular cooler features a large heat exchange area within a small footprint, delivering efficient cooling in limited space.

3.Spiral Flow Path:Equipped with a spiral baffle plate that guides liquid into a continuous rolling flow, enhancing uniform heat exchange and preventing dead zones.

4.Reliable Sealing:The expanded-tube sealing method avoids thermal deformation and leakage often caused by high-temperature welding.

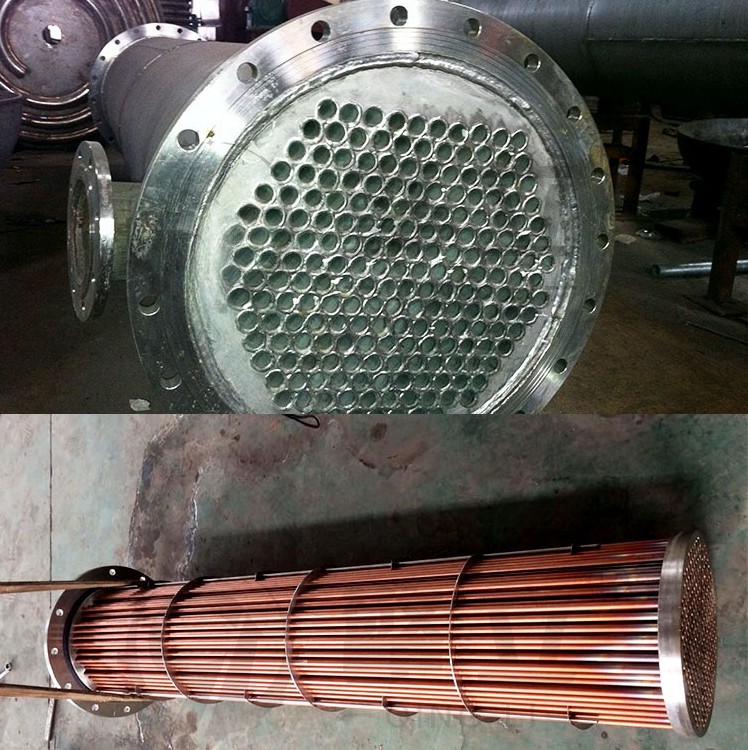

5.Durable and Easy to Maintain:Removable tube bundle and water chamber cover allow quick inspection, cleaning, and servicing without dismantling the entire unit.

Applications

1.Industrial liquid-to-liquid cooling systems

2.Oil and water heat recovery units

3.Condensers and process cooling loops

4.HVAC and central air-conditioning systems

Customization Options

Customized configurations are available based on specific system requirements. Parameters such as flow rate, temperature, pressure, material, and installation space can be adjusted.

Non-standard designs are supported to meet special process or structural needs.
